From image and pose measurements to actionable framing guidance.
Project header
Category: Computer vision research prototype. Role: Project lead and primary researcher/developer. Timeline: Documented implementation and research artifacts from April–August 2026. Status: Completed prototype and EFAST presentation; no accepted/publication claim. Context: Metropolitan University, Bangladesh.
Overview and problem
Solo photographers must judge their position in the frame while also operating a camera. The research asks whether a model can predict interpretable framing measurements and convert deviations into useful adjustment instructions, rather than returning an unexplained quality score.
Solution and my contribution
I implemented the annotation, training, inference, and evaluation pipeline and prepared the analysis, manuscript, figures, and presentation. MediaPipe provides pretrained pose extraction; ConvNeXt supplies an ImageNet-pretrained visual backbone; COCO supplies source images. Course-level submission and presentation guidance is documented separately from model development.
Technical architecture
MediaPipe extracts 33 landmarks with x, y, and visibility values. ConvNeXt-Base processes 224×224 images; a 99→256→128 MLP encodes pose. A fusion layer feeds composition-score regression, binary framing classification, and four framing-metric outputs: headroom, horizontal position, vertical position, and body-to-frame ratio. A deterministic rule engine maps those metrics to camera instructions. The browser demonstration extracts pose, runs the exported ONNX graph, draws overlays, and displays results through ONNX Runtime Web.
Key engineering work
The collection contains 1,500 COCO images and 1,088 completed usable annotations. Stratified train/validation/test sets contain 761/163/164 images. Training combines the three tasks, with saved evaluation outputs and paired five-seed comparisons. The browser path uses WASM execution with SIMD and bounded threads because WebGL could not resolve operators in the dynamically quantized graph.
Challenges and solutions
Browser operator incompatibility was addressed through WASM. Small-data overfitting was monitored with validation checkpoint selection, augmentation, and dropout. Reviewer-response revisions clarified that labels and scores are geometry-derived heuristics, including the circularity of pose-related targets. Five-seed evaluation led to removal of a general pose-fusion accuracy claim rather than hiding the negative finding.
Technology stack
Research: Python 3.12, PyTorch 2.6, timm, ConvNeXt-Base, CUDA. Pose/data: MediaPipe Pose, COCO 2017, annotation JSON. Demo: ONNX, ONNX Runtime Web, JavaScript, WASM. Outputs: Manuscript, figures, slides, evaluation reports.
Results and limitations
The primary seed-42 test recorded 84.1% accuracy, perfect-class F1 0.827, ROC-AUC 0.888, and composition-score MAE 1.27 on the geometry-derived 1–10 scale. Instruction agreement was 84/96, or 87.5%, on the needs-fixing subset. Across five seeds, pose fusion averaged 79.0% ± 2.9% accuracy versus 79.5% ± 1.7% for visual-only ConvNeXt. This does not establish a general pose-fusion classification advantage. Single-person framing, missing/occluded landmarks, heuristic labels, and lack of physical closed-loop camera tests bound the results.

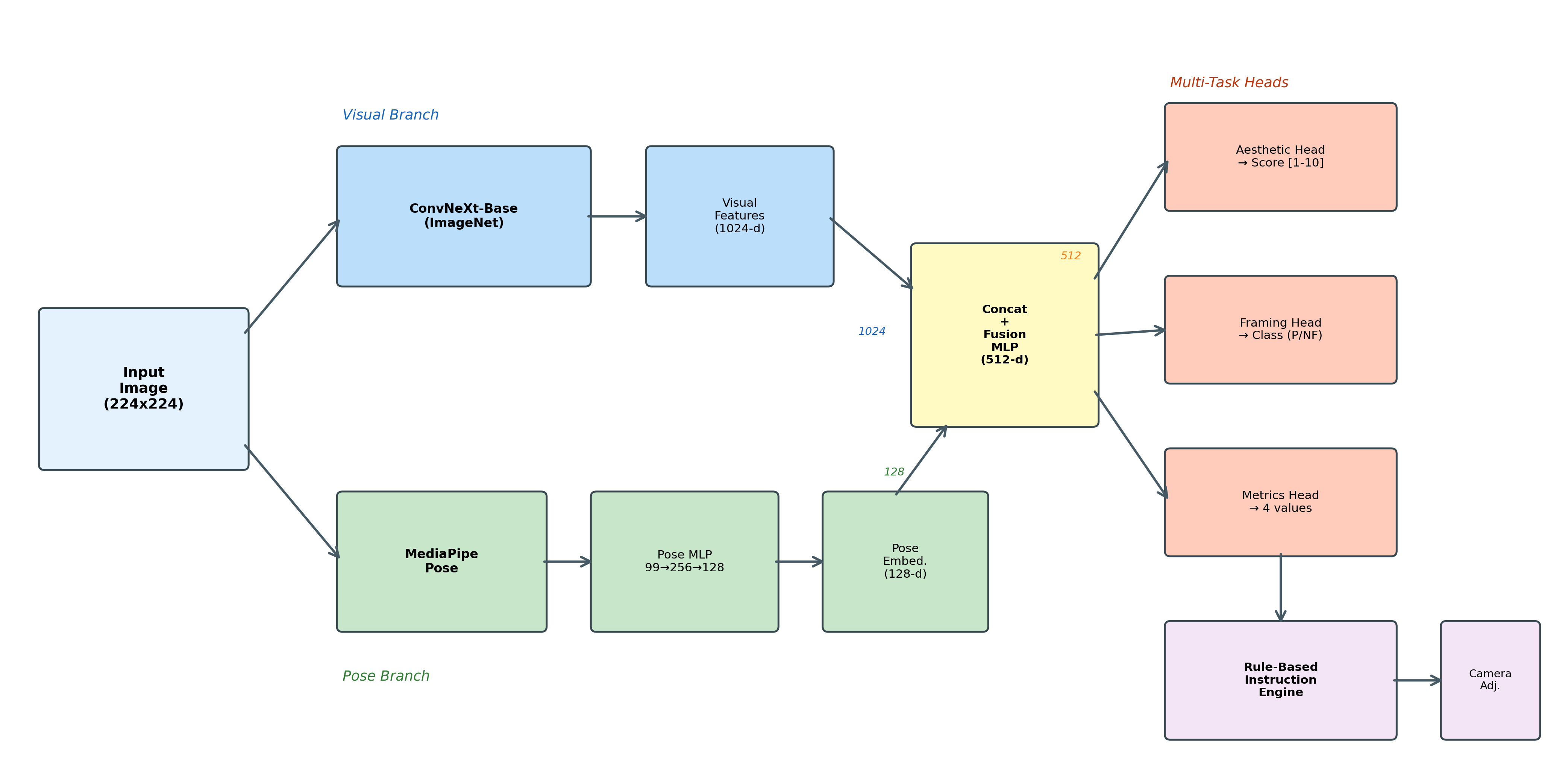

Architecture figure
The figure’s aesthetic head predicts a geometry-derived composition score. Camera adjustment denotes instruction output; physical actuation was not evaluated.
